An article to let you know about PVC ball valves
PVC ball valve function
Ball valve, the opening and closing part (ball) is driven by the valve stem and rotates around the axis of the valve stem. Mainly used to cut off or connect the medium in the pipeline. Also used for fluid regulation and control. Among them, the hard-sealed V-shaped ball valve has a strong shear force between the V-shaped core and the metal valve seat of the cemented carbide. Shear force is particularly suitable for media containing fibers and tiny solid particles.
The multi-way ball valve on the pipeline can not only flexibly control the confluence, diversion and flow direction switching of the medium, but also can close any one channel to connect the other two channels. This valve should generally be installed horizontally in the pipeline.
Ball valve classification: pneumatic ball valve, electric ball valve, manual ball valve.
Basic Information
The application of pvc ball valve generally does not exceed 45 ℃, and the medium is not suitable for organic solvents and strong oxidants. According to this situation, this type of ball valve can only be used for fluids below 45°C and the pressure is less than 1.0mpa.
Compared with other valves, it has the following advantages.
1. Low fluid resistance
The ball valve has the smallest fluid resistance among all valves. Even the reduced diameter ball valve has very little fluid resistance. PVC ball valve is a new material ball valve product developed according to the needs of various corrosive pipeline fluids. Product advantages: light weight, strong corrosion resistance, compact and beautiful appearance, light body weight, easy installation, strong corrosion resistance, wide application range, hygienic and non-toxic materials, wear-resistant, easy to disassemble, simple maintenance.
In addition to PVC plastic materials, plastic ball valves also include PPR, PVDF, PPH, CPVC, etc.
2. PVC ball valve has excellent corrosion resistance.
The sealing ring adopts F4. Excellent corrosion resistance and prolong service life. Flexible rotation and easy to use.
3. As an integral ball valve, the PVC ball valve has few leakage points, high strength, and the connection type ball valve is easy to assemble and disassemble.
The installation and use of the ball valve: When the flanges at both ends are connected with the pipeline, the bolts should be tightened evenly to prevent the flange from being deformed and causing leakage. Turn the handle clockwise to close, and vice versa to open. It can only be used for cut-off and flow-through, and flow adjustment is not suitable. Liquids containing hard particles can easily scratch the surface of the ball.
4. Powerful functions:
Intelligent type, proportional type and switch type are all available, and the volume is small: the volume is only equivalent to about 35% of similar products.
5. Lightweight and cheap people:
The weight is only about 30% of similar products, and the performance is reliable: the bearings and electrical components are imported brand-name products.
6. Beautiful and generous:
Aluminum alloy die-casting shell, delicate and smooth, high strength and wear resistance: special copper alloy forged worm gear, high strength and good wear resistance.
7. Security guarantee:
1500v withstand voltage, the special wire lock of the lock cable is simple: single-phase power supply, the external wiring is particularly simple.
8. Easy to use:
Oil-free spot inspection, waterproof and rust-proof, installation at any angle, protection device: double limit, overheat protection, overload protection.
9. Multiple speeds:
The total travel time is 5 to 60 seconds, which can meet the requirements of different working conditions. The special-grade wire is made of heat-resistant and flame-retardant wire, which does not age when heated, and is safe and reliable.
technical parameter
Applicable fluids: water, air, oil, corrosive chemical liquids
For example: pure water and raw water piping systems, drainage and sewage piping systems, brine and seawater piping systems,
Many industries such as acid-base and chemical solution systems.
Body material: PVC
Sealing material: EPDM/PTFE
Transmission mode: 90º rotary electric drive
Actuator material: cast aluminum alloy/plastic housing
Protection device: overheat protection
Action time: 4-30 seconds
Nominal pressure: 1.0Mpa
Nominal diameter: DN15-200
Protection class: IP65
Fluid temperature: -15℃－60℃ (without freezing)
Ambient temperature: -25℃－55℃
Power consumption: 8VA-30VA
Installation method: installation at any angle (horizontal or inclined installation is most suitable for extending the service life)
Power supply voltage: standard AC220V, optional DC24V, AC110V
Voltage tolerance: ±10%, DC tolerance ±1%

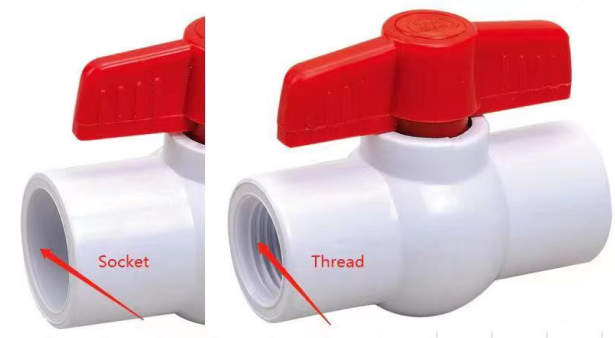

Connection method: internal thread, bonding, flange
Connection Diameter: 1/2″-4″
What are the skills of pvc ball valve maintenance
★ If the ball valve leaks due to the loose handle, clamp the handle in a vise, and then turn the handle counterclockwise to tighten it. It should be noted that you need to be careful when tightening the handle, do not use too much force, otherwise the ball valve will easily be damaged.
★ If the connection between the pvc ball valve and the water pipe is not tight, the sealing is not good, and there is water leakage, you can wrap the raw material tape valve at the place where the water pipe connects the ball, and install the ball valve after winding to avoid water leakage.
★ If there is water leakage due to cracking or defect of the ball valve, the old ball valve should be disassembled and re-installed.
It should be noted that the pvc ball valve needs to be operated correctly when disassembling and assembling, and the following points should be done well.
★ After the ball valve is closed, all pressure in the ball valve must be released before disassembly, otherwise danger may occur. A lot of people don’t pay attention to this. Disassemble immediately after valve is closed. There is still some pressure in there. This part of the pressure is not released, which is not conducive to personal safety.
★ After the ball valve is disassembled and repaired, it needs to be installed in the opposite direction of disassembly and tightened, otherwise it will leak.
If you want the pvc ball valve to last longer, you must reduce the number of switches as much as possible. When there is water leakage, you need to repair it in time according to the three tips in the article, and return to normal use as soon as possible.
Post time: May-12-2022
