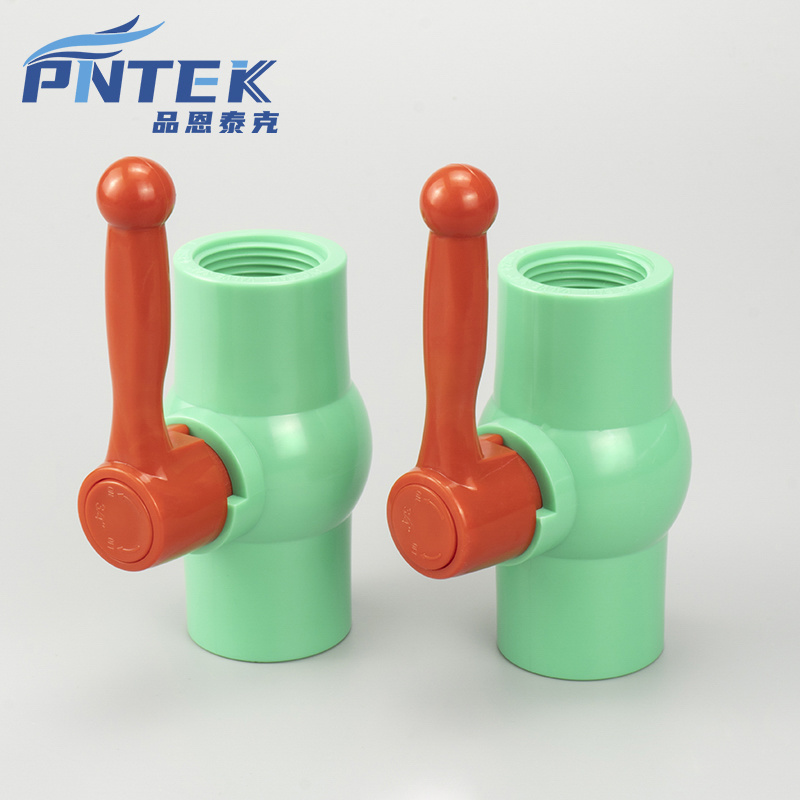

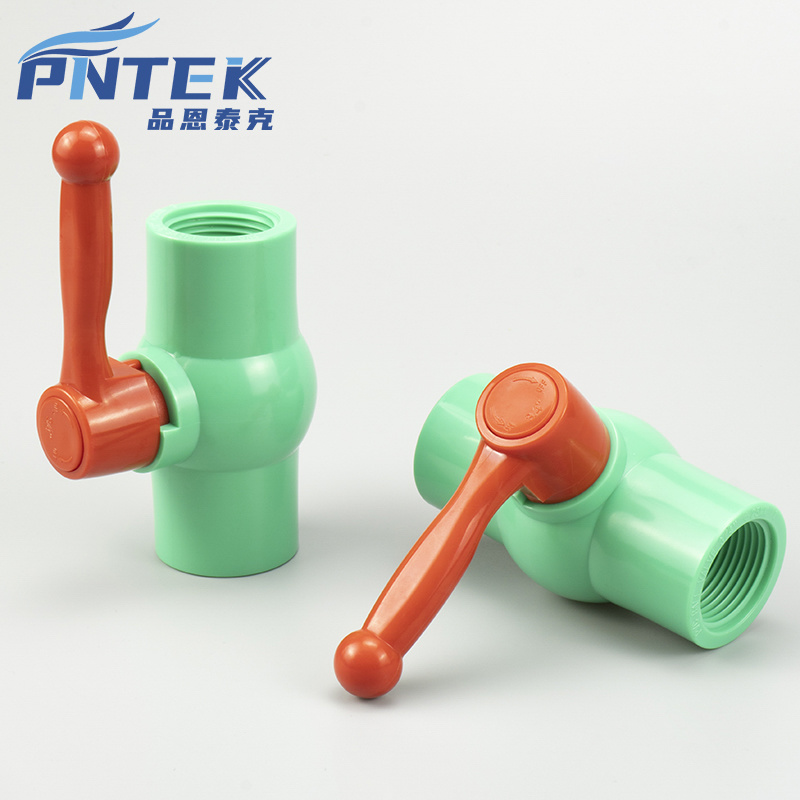

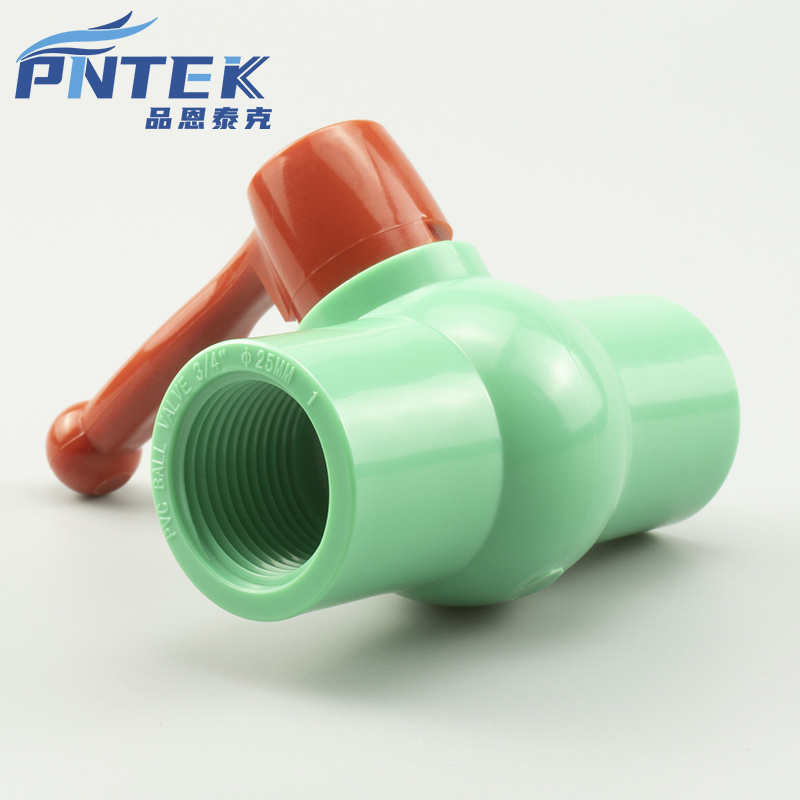

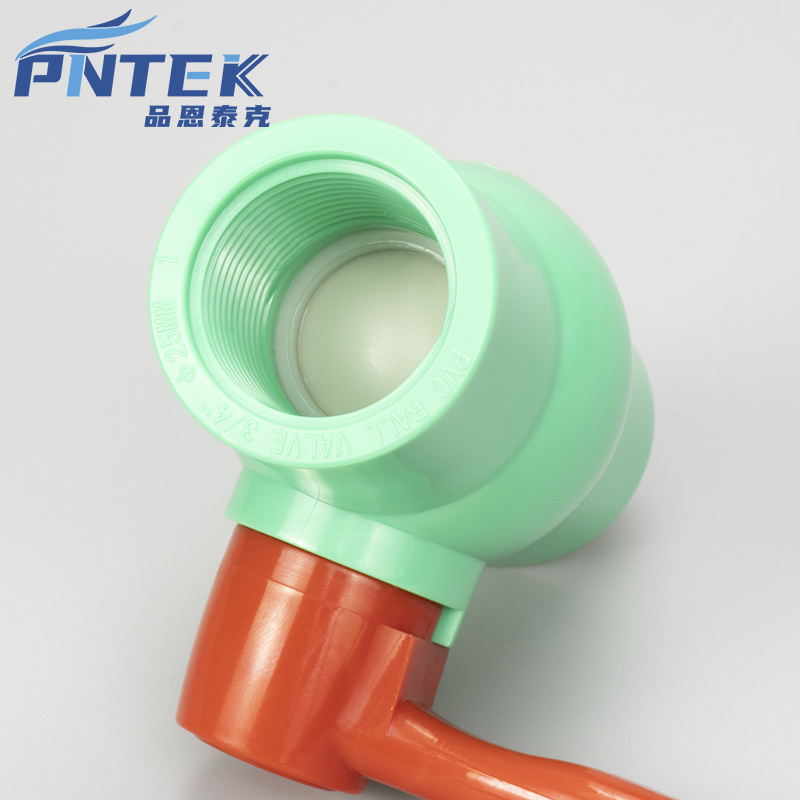

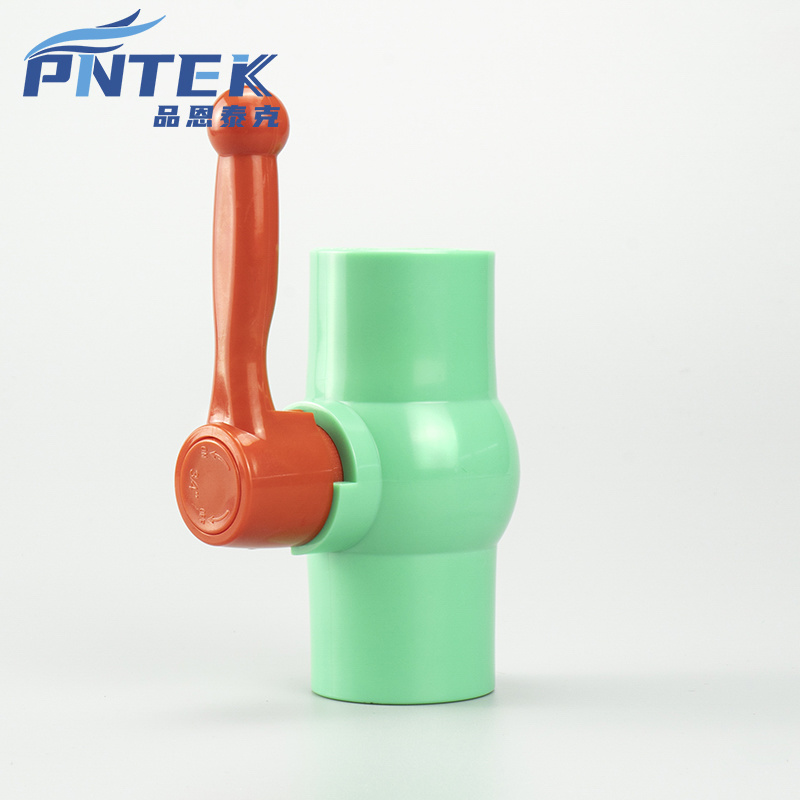

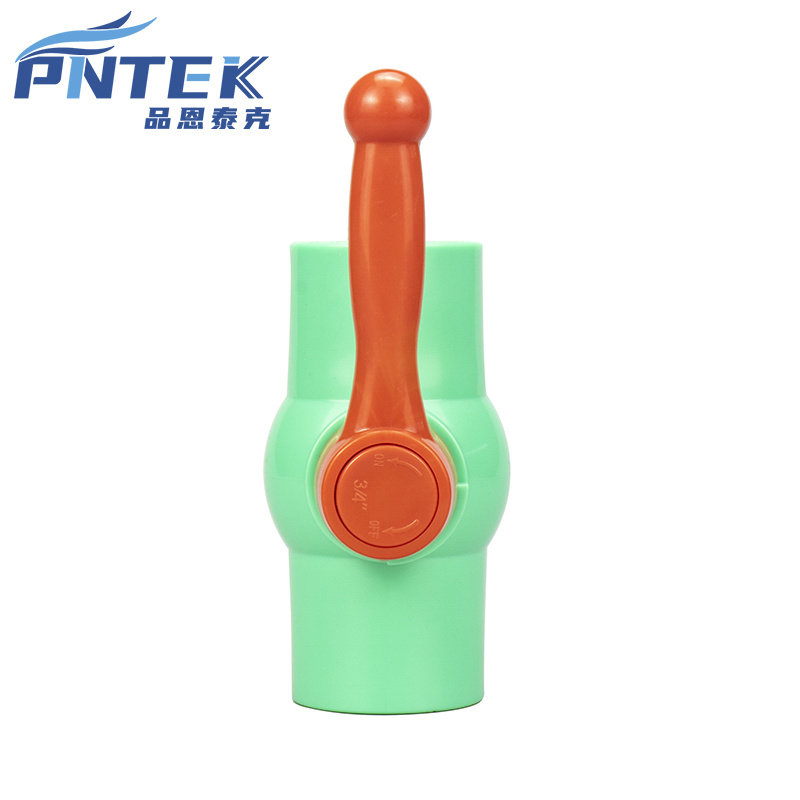

China Pvc Ball Valve With Long Handle For The Bangladesh Market
Essential details
Warranty: 3 years
Type: BALL VALVES, Gate Valves, Stop & Waste Valves, Plastic Check Valves, Foot Valves, Mixing Valves, Butterfly Valves
Customized support: OEM, ODM
Place of Origin: Zhejiang, China
Brand Name: PNTEK
Model Number: PNB1111
Application: General
Temperature of Media: Normal Temperature
Power: Manual
Media: Water
Port Size: 1/2''-2''
Structure: BALL
Product name: PVC Ball Valve
Material: UPVC,PVC
Standard: CNS/JIS/DIN/BS/ANSI/NPT/BSPT
Working pressure: 1.0-1.6Mpa (10-25bar)
Packing: Carton box or as per customer's request
OEM: Availabe
Usage: Water Treatment
Feature: Easy Installation
Logo: Printed or Customized
Size: 1/2'' ~ 6''
Product Description
Brand Name:PNTEK
Use:Agriculture irrigation/Mariculture/Swimming pool/Engineering construction
Color：Many colors available for choice
Material：UPVC
Temperature of Media: High Temperature, low temperature, Medium Temperature, Normal temperature
Product life:：> 500,000 Times Open & Close
Product Description
Our company's ball valve can withstand corrosion very well, so its service life can be effectively extended, and the product itself is very flexible and convenient, with high strength and less leakage, so it is highly praised by consumers. They're widely used in industrial and civil building, including indoor and out door drainage,
sewage pipe projects, corrosion chemical conditions and also can be used for agricultural irrigation system.
Besides, theyr'e also suitable for ventilation pipe andd drainage pipeline, etc.We have different sizes of products even for a single item，for different application situation. 100% leak test to make sure the products you get are good. There will be normal products inspection during producing to make sure the products are reach international standard.
As the proportion of plastic pipes in hot and cold water supply and industrial pipe engineering applications continues to increase, the quality control of plastic valves in plastic pipe systems is becoming increasingly important.
Product advantages
1, Light weight and high strength
2. No vibration noise when it's used
3. Easy to be opened and closed
4. Compact ball valve is easy to be installed
5. Lowest leakage rate, 100%tested before packing
6. The fluid resistance is small
7. Handle material of ball valve: ABS, body material: PVC
8. Alkali and acid resistance
9. Soft color and execllent design
10. Environment friendly, non-toxic
11. Widly used in daily life: Construction, agricultural irrigation, industry, garden, swinming pool...
12. These ball valve are offered in sizes ranging from 20mm to110mm(from 1/2'' to 4'')
13. Color Available: Green, grey, white, brown, blue
14. Certificate: ISO 9001,china test
Legend and physical map
Component material
specification of material
| NO. | Part | Material | QTY |
| 1 | BODY | UPVC,CPVC | 1 |
| 2 | STEM O-Ring | EPDM,FPM(NBR) | 1 |
| 3 | STEM | UPVC,CPVC | 1 |
| 4 | BALL | UPVC,CPVC | 1 |
| 5 | SEAT SEAL | TPE,TPVC,TPO | 2 |
| 6 | CAP | PVC,ABS | 1 |
| 7 | HANDLE | PVC,ABS | 1 |
| 8 | SCREW | SS304,STEEL | 1 |
Model size parameter comparison table
| DIMENSION | Unit | |||||||||||
| MODEL | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | ||
| SIZE | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | Inch | ||
| thd./in | NPT | 14 | 14 | 11.5 | 11.5 | 11.5 | 11.5 | 8 | 8 | 8 | mm | |
| BSPT | 14 | 14 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | mm | ||
| JIS | I | 20 | 23 | 25 | 27 | 31 | 34 | 45 | 50 | 55 | mm | |
| d1 | 22.3 | 26.3 | 32.33 | 38.43 | 48.46 | 60.56 | 76.6 | 89.6 | 114.7 | mm | ||
| d2 | 21.7 | 25.7 | 31.67 | 37.57 | 47.54 | 59.44 | 75.87 | 88.83 | 113.98 | mm | ||
| ANSI | I | 20 | 23 | 25 | 27 | 31 | 34 | 45 | 50 | 55 | mm | |
| d1 | 21.54 | 26.87 | 33.65 | 42.42 | 48.56 | 60.63 | 73.38 | 89.31 | 114.76 | mm | ||
| d2 | 21.23 | 26.57 | 33.27 | 42.04 | 48.11 | 60.17 | 72.85 | 88.7 | 114.07 | mm | ||
| DIN | I | 20 | 23 | 25 | 27 | 31 | 34 | 45 | 50 | 55 | mm | |
| d1 | 20.3 | 25.3 | 32.3 | 40.3 | 50.3 | 63.3 | 75.3 | 90.3 | 110.4 | mm | ||
| d2 | 20 | 25 | 32 | 40 | 50 | 63 | 75 | 90 | 110 | mm | ||
| d | 15 | 19 | 24 | 30 | 34 | 45 | 55 | 70 | 85 | mm | ||
| H | 37 | 55 | 66 | 73 | 81 | 91 | 99 | 121 | 134 | mm | ||
| A | 68 | 80 | 94 | 100 | 110 | 136 | 170 | 210 | 236 | mm | ||
| L | 77 | 91 | 103 | 111 | 123 | 146 | 178 | 210 | 255 | mm | ||
| D | 30 | 35.5 | 43 | 52 | 62 | 75 | 91 | 106 | 130 | mm | ||
